Description

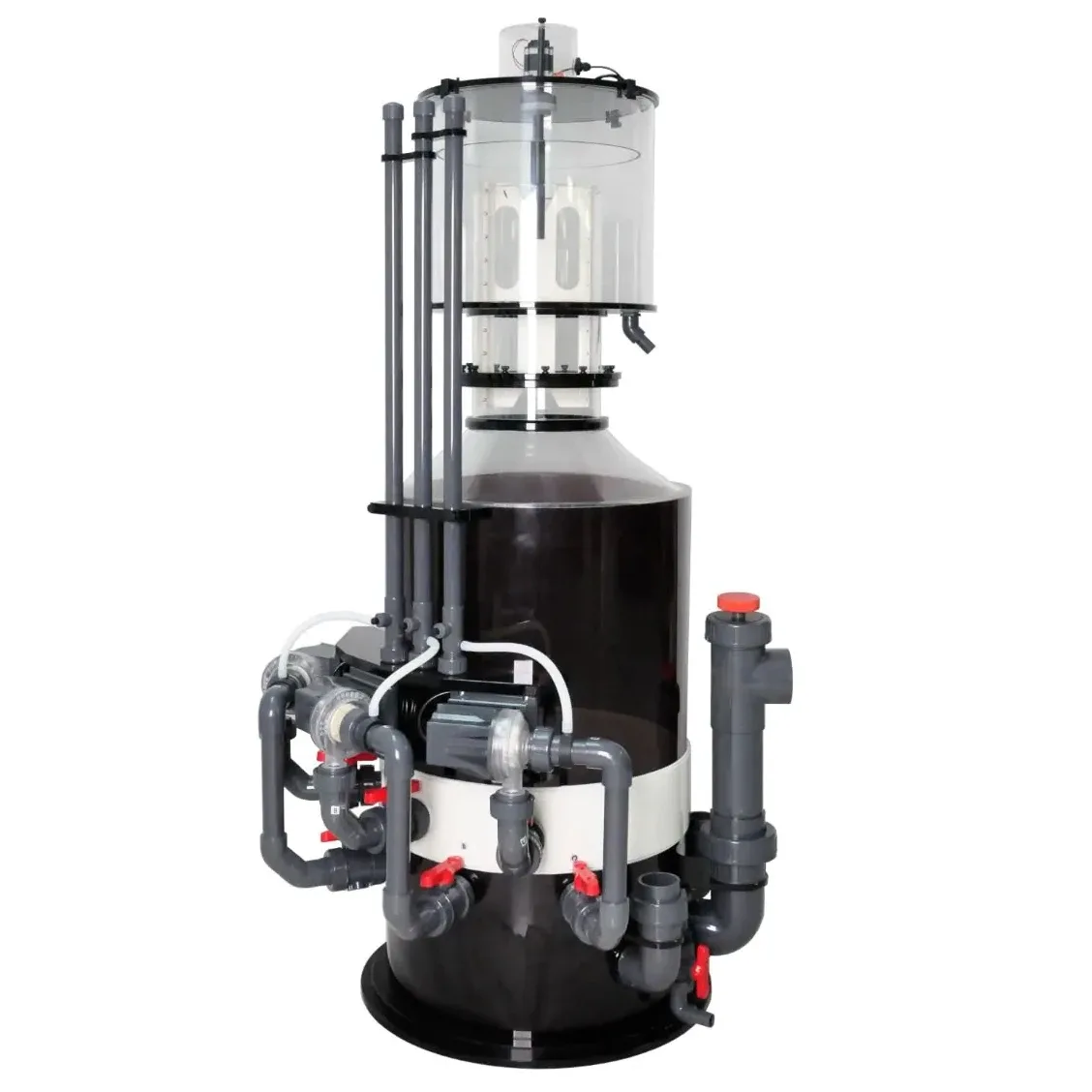

Reef Octopus Q6 Commercial Foam Fractionator
For Commercial Systems up to 10,000 Gallons
Footprint: 37.5″ x 37″ | Body Diameter: 24″ | Height: 69″ | Power: 375wPump: x3- Reef Octopus Bubble Blaster 10000s- Recommended feed flow: 2700-3500GPH
Great for commercial systems: 6,500-10,000 gallons
The Q6 is a commercial-size foam fractionator that is extremely efficient at removing dissolved organics and pollutants from seawater. Utilizing a group of 3 Bubble Blaster 10000 pinwheel pumps that efficiently chops and injects a mass amount of microbubbles into its 24in diameter body where it mixes in with approximately 70 gallons of water. The dissolved organics and pollutants are attracted to the microbubbles and rise into a waste collection cup. These foam fractionators are compatible with ozone with direct venturi ports installed for added safety. Foam collection cups remove easily for maintenance.
Applications include aquaculture recirculating systems, commercial displays, large aquaculture facilities, aquarium/ zoological exhibits, mammal exhibits, seafood-holding systems, ornamental ponds, and shrimp systems.
The Power
The quiet yet powerful Reef Octopus Bubble Blaster HY-10000 is a super-efficient pinwheel skimmer pump that comes backed by a 2 year warranty. Our Bubble Blaster skimmer pumps are a true innovation to the aquarium hobby. Equipped with a calcium inhibiting silicone nitride shaft and bearings our Bubble Blaster skimmer pumps the increasing life of the pump and decreasing maintenance. While all other skimmer pumps on the market are modified water pumps from a water pump manufacturer the Bubble Blaster pumps were designed and built to be a skimmer pump! Enhanced with a digital control circuit board that controls the pumps’ directional start-up and RPM speeds. This smart circuit board will shut the pump off if it detects a problem. Another unique feature is the clear volute housing which allows you to see inside the pump without having to take it apart allowing you to see if something is stuck inside the volute housing or pinwheel. The key feature of the Bubble Blaster pumps is the enormous amount of air they pull per watt. Air and water volume is the key to aggressive protein skimming and there is no other pump on the market that compares.
Bioload Handling
The bioload of an aquarium refers to its ability to process waste in proportion to tank volume. Protein skimmers work best when properly matched with the bioload of the system.
(EXCLUDING SUMP)
Heavy
Medium
Light
6,500 gallons
8,000 gallons
10,000 gallons
Features
Super Efficient Filtration
High-Performance Recirculating pinwheel pumps with Max injection Venturi System
Refined Hybrid (half cone) Skimmer Body for Greater Foamate Stabilization & Collection
Over-Sized Collection Cup with Neck Cleaner and Drain
Ozone Injection Port(s)
Precision Water Level Control Output Valve
Solid Acrylic Construction
Service Drains
The Skimmer
Hybrid body skimmers have been a huge hit amongst budget-wise professionals and hobbyists due to the ideal conical transition from the body to the neck. This reduces turbulence, directs the flow gently up to the neck, and reduces head pressure off of the re-circulation pump providing enhanced performance.
Terms of purchase
This skimmer requires 8-10 week lead time and a 50% deposit upfront to begin the building of the skimmer. Skimmers can only ship by freight and are required to cover the cost of shipping. We can ship directly to the job site if desired.
Technical Specs
Body Size: 24inFootprint: 37.5in x 37inTotal Height:69in
Collection Cup Diameter:17.7inCollection Cup Volume:6galNeck Size: 10in
Main Chamber Volume: 70gal
Output Size: 90mm 3in PVCOutput Height: 12.24inFeed Inlet Size: (x1) 1.5in, (x1) 2inRetention Time: 1.5min
Note: Suggested Feed Rate of 2700-3500GPH
Recommended feed pump: x1-Reef Octopus Water Blaster 10,000
Pump Information
X3 -Reef Octopus Bubble Blaster HY-10000sPinwheel PumpVoltage: 120v/…
