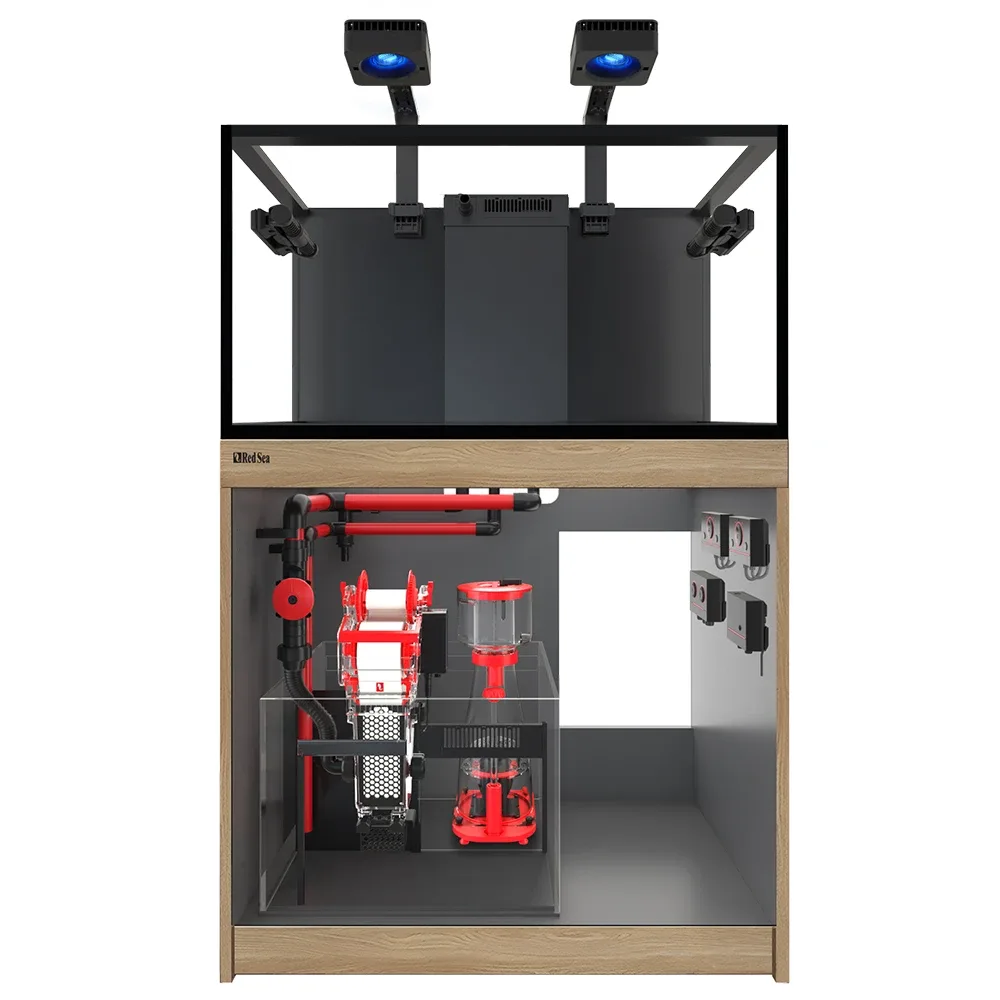

Red Sea REEF-FRAME MAX 250
Description
REEF-FRAME Concept
The REEF-FRAME line of popular-sized reef systems blends years of hobbyist input with precision engineering and forward-thinking design. All models feature eurobracing for added strength, ultra-clear glass bonded with high quality euro-silicone for long-lasting structural integrity, and new plywood cabinets designed to fully support the glass structure.
These beautiful aquariums provide a lasting frame, so you can create a stunning picture.
REEF-FRAME systems are available in a fully bare version for complete customization, or a MAX version equipped with a full ecosystem of ReefBeat smart devices.
Features:
Eurobraced ultra-clear glass
REEF-FRAME aquariums are made of ultra-clear glass with increased thickness of up to 15 mm/0.59”, eurobraced for extra strength, and bonded with high quality euro-silicone for long-lasting, structural integrity.
10-15mm Ultra clear glass
(Thickness per model)
Extra fortified cabinet
REEF-FRAME aquariums are mounted on marine-spec plywood cabinets designed to support the full contour of the glass, with adjustable feet for perfect levelling. REEF-FRAME cabinets are also available in a classic oak finish in addition to black and white.
Laminated plywood cabinet
Adjustable feet
Stainless steel hinges
Pump return outlets
Curved return outlets and silent overflow box
REEF-FRAME systems feature 25 mm curved return outlets for optimal flow. The REEF-FRAME 350 and 500 models include dual return outlets for single or dual return pump systems. Return piping is concealed inside a large central overflow box with a large surface skimmer and removable comb sections for easy cleaning.
Dual return pump outlets
Highly effective surface skimming
Optimal water circulation
Surface skimmer
The piping is hidden inside a large central overflow box, which has a large surface skimmer with removable comb parts, for easy cleaning.
Silent downflow system
The downflow pipes are enlarged to promote quieter flow, with a rectangular profile for enhanced circulation.
ReefGate high-precision flow valve
REEF-FRAME systems include the new ReefGate, high-precision bespoke gate valve on the downflow pipe, allowing for easy regulation of the flow and a near silent operation.
Hydrodynamically superior piping
REEF-FRAME systems feature hydrodynamically superior piping that maximizes circulation, with optional connector kits in both metric and USA sizes for piping customization.
Reef Spec sump
The high-performance Reef Spec sumps include a dedicated skimmer chamber with adjustable water height, an optional sump divider for a dedicated refugium chamber (not available for the 170 model), a ReefMat-ready easily removable mechanical filtration compartment, and a bubble trap to prevent air bubbles from returning to the aquarium.
ReefMat-ready
The easily removable mechanical filtration compartment allows for a quick Plug & Play installation of the ReefMat 250/500/1200.
Easy setup
Easy maintenance
Solid state sensor
Register your REEF-FRAME within 90 days of purchase
And turn your standard 3-year warranty into 5 years, at no extra cost!
REEF-FRAME Model
170
250
350
500
Total Water Volume(gal)
46.2
65
93.4
136.3
Display Tank Water Volume(gal)
35.9
53.9
74.6
107
Sump Water Volume(gal)
10.3
11
18.8
29.3
Display Tank Length
23.6″
35.4″
47.2″
59.1″
Display Tank Width – Excluding light
20.1″
20.1″
21.6″
22.6″
Display Tank Height – Excluding light
20.9″
20.9″
20.9″
21.6″
Total System Height – Excluding light
53.9″
53.9″
53.9″
55.9″
Ultra-Clear front glass
0.39″
0.47″
0.47″
0.59″
Ultra-Clear side glass
0.47″
0.47″
0.59″
0.59″
Bottom Glass
0.39″
0.47″
0.47″
0.59″
Back Glass
0.31″
0.39″
0.47″
0.59″
Bracing
Eurobrace
Aquarium Support
Full Cabinet
Main System Pump
1x ReefRun G2 4000
1x ReefRun G2 4000
1x ReefRun G2 6000
1x ReefRun G2 8000
Water Circulation …
