Description
Product Overview

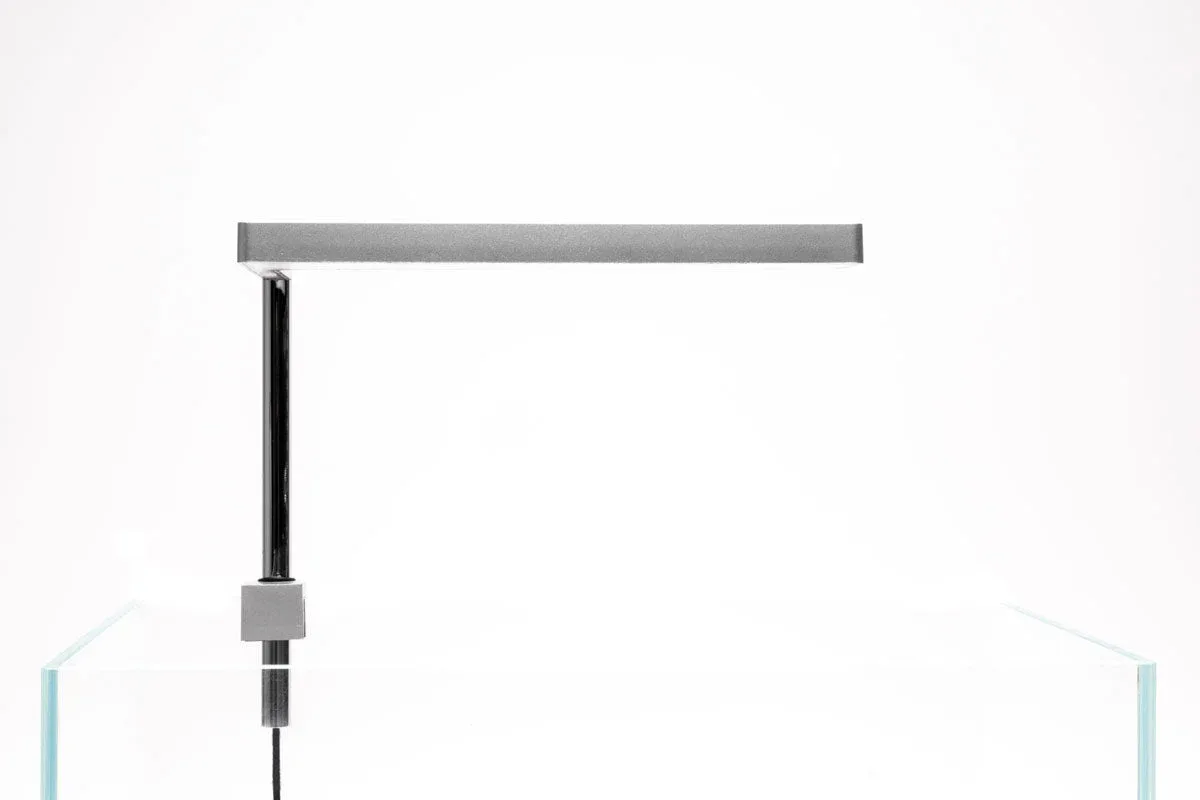

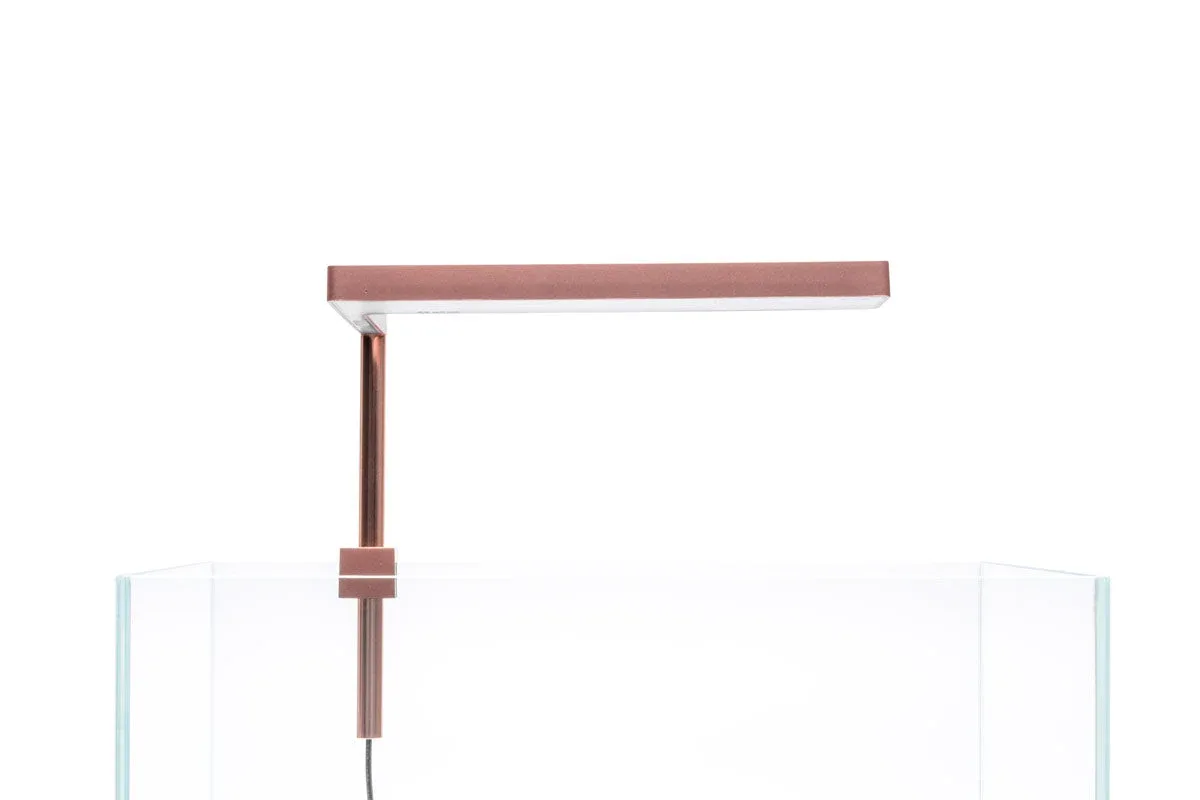

The ONF Flat Nano LED Light blends clean design with serious plant‑growing power. Made for rimless desktop tanks between 2 and 9 gallons, it delivers a tuned full spectrum that makes greens look lush, reds stand out, and fish or shrimp colors really pop. The Flat Nano mounts easily onto your glass with a sturdy, rust‑resistant clamp that fits panels from 5mm to 8mm thick, keeping everything secure and looking sharp.
Pair with the ONF Flat Nano Stand Kit to turn this clip-on light into a standing desktop fixture.
Key Features & Benefits
Full-Spectrum ColorFull Technology: Premium 7000K spectrum mimics crisp midday sunlight to spark intense photosynthetic activity while delivering high Color Rendering Index (CRI) color pop.
360-Degree Swivel Mounting Arm: Swing the entire light panel clear of the water column for effortless glass scraping, plant pruning, and hardscape tweaking.
Capacitive Touch Control: Touch-sensitive pad allows you to smoothly shift through 3 dimming levels with a simple tap of your finger.
Gradual Ramping & Smart Memory: Slowly scales light intensity during power cycles to prevent livestock shock, while built-in memory locks in your last brightness setting when used with external timers.
IP54 Rust-Resistant Aluminum Unibody: Premium aluminum housing acts as an efficient passive heat sink to guarantee a 50,000-hour operational life.
Precision Rim-Mount Clamp: Clamps securely onto rimless glass or acrylic aquarium panels measuring between 5mm and 8mm thick.
Technical Specifications
Please check your rimless aquarium’s exact glass thickness to ensure a proper mechanical fit for the integrated rim clamp.
Attribute
Specification
Brand
ONF (Taiwan)
Model
Flat Nano LED Light
Dimensions (W x D x H)
9.0″ x 5.5″ x 8.2″ (22.9 x 14.0 x 20.8 cm)
Weight
285 grams
Power Consumption
15 Watts
Luminous Flux
1,300 Lumens
LED Count & Type
60 Pieces (7000K Full Spectrum)
Beam Angle
110° Even-Spread Distribution
Water Resistance Rating
IP54 Splash Resistant
Input Voltage
AC 100–240V, 50/60Hz
Max Glass Thickness
Fits 5 mm to 8 mm Thick Panels
LED Lifetime
~50,000 Hours
Recommended Aquarium Models
The ONF Flat Nano is specifically dimensioned for nano aquariums ranging from 2 to 9 gallons:
UNS Rimless Aquariums: UNS 5S, UNS 25S, UNS 16T, UNS 5N, UNS 3N, UNS 25C, UNS 20C, UNS 16C.
What’s Included
1x ONF Flat Nano Light Fixture & Swivel Arm Assembly
1x Integrated Glass Rim-Mounting Clamp (5mm–8mm Capacity)
1x Power Adapter & Cable Unit
Frequently Asked Questions
1. Can I convert the ONF Flat Nano into a freestanding desktop light?
Yes! By adding the ONF Flat Nano Stand Kit, you can detach the clamp mechanism and convert the fixture into a freestanding desktop light with a weighted baseplate.
2. Can I use the ONF Flat Nano with an external wall timer?
Yes! Thanks to its intelligent memory chip, the ONF Flat Nano remembers your last saved dimming setting when an external timer restores power.
3. Will this light clamp fit on rimmed or plastic-framed aquariums?
No. The clamp is engineered specifically for rimless glass or acrylic panels between 5mm and 8mm thick. It will not accommodate standard plastic-framed or rimmed aquariums.
