Description

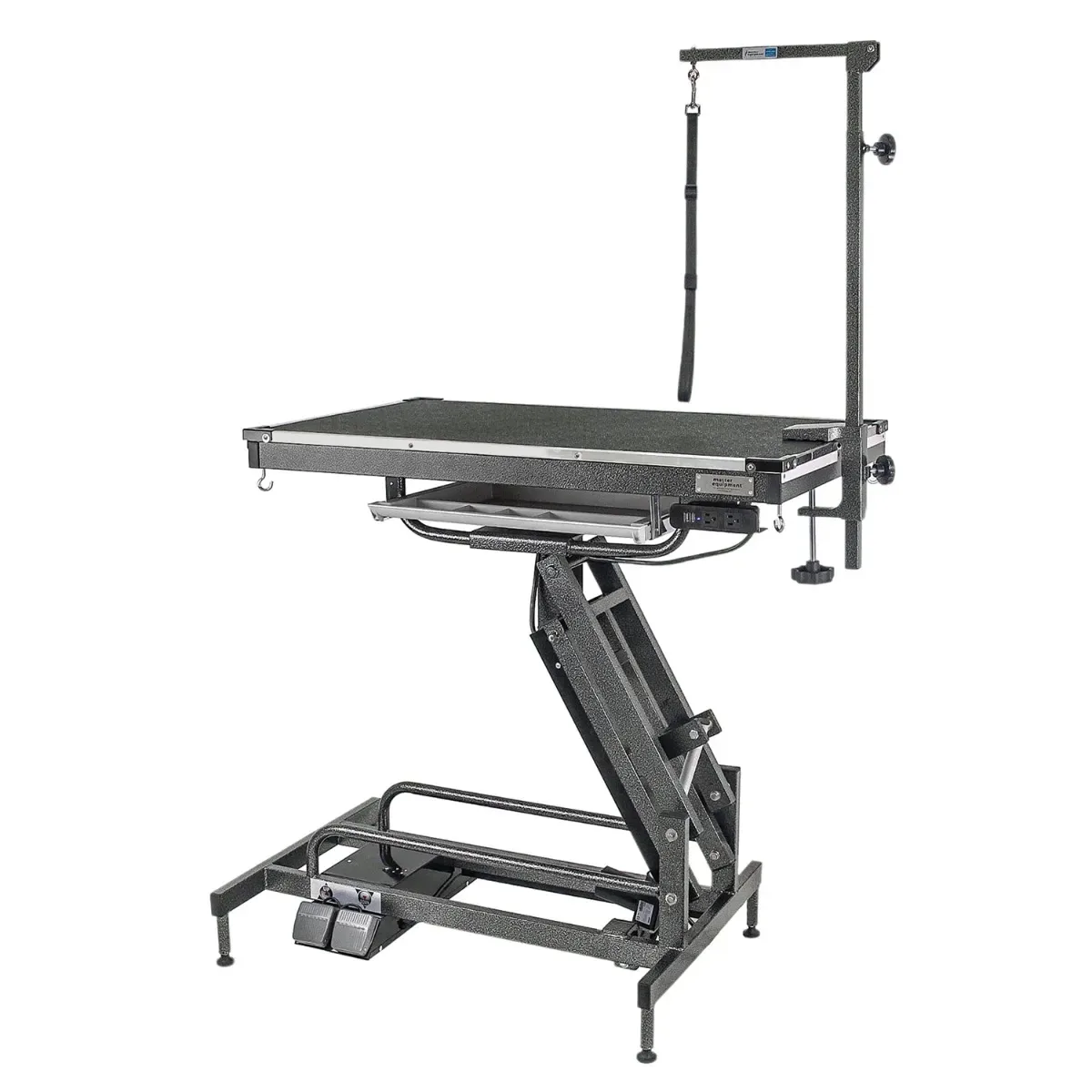

The Master Equipment® Origin III Electric Table is now more functional than ever! Features 2 grounded electrical outlets, two USB ports, sturdy iron and wood construction, and a drawer for added convenience. Master Equipment has upgraded their classic design adding value and functionality to what was already regarded as one of the best grooming tables available. Outlets on the table mean fewer cords running across the floors, and the convenient drawer means misplaced grooming tools are a thing of the past!
Two grounded 3-prong AC
Two USB Ports (DC 5V, 2100mA)
Electric motor lifts and lowers table from 20″ to 44″H
Lifts pets up to 185 lbs using the dual foot pedals at the base
3″ thick tabletop, Z-style frame with an H-style base
Includes FREE grooming arm and 18″ loop
Optional casters sold separately (see #TP14664)
Table comes fully assembled.
Materials: Steel base and frame; Table top is plywood with rubber matting
Tabletop measures 41″L x 24″W x 3″ thick
Materials & Color:
Table Frame: 18 gauge, 1.2mm thick steel. Powder-coated graphite finish.
Tabletop: 1/2″ plywood with black rubber matting. Type 304 stainless steel trim.
Grooming Arm: Powder-coated graphite finish. Horizontal Bar is 20 gauge, 0.9mm thick steel. Vertical Bar is 19 gauge, 1.0mm thick steel. Clamp is 13 gauge, 2.2mm thick steel. Small knobs are black high impact polystyrene (HIPS). Large knob is black nylon PA66. Screws are nickel-plated steel.
Drawer: White High Impact Polystyrene (HIPS) plastic.
Pedals: Grey ABS plastic.
Voltage & Power:
• Rated Power: 72 Watts
• Input Voltage: 120 Volts
• Output Voltage: 28 Volts
Specifications
Weight Capacity: 185 lbs
Rate of Descent: 0.97inches/second
Rising Rate: 0.75inches/second
⚠️ Dryers should NOT be plugged into the table
Click here for downloadable instructions (PDF)
Click here for downloadable schematic (PDF)
This product is not eligible for shipping discounts. Additional shipping charges may apply and will be reflected at checkout.
Replacement Parts:
TP15144
Master Equipment Replacement Control Box
TP15146
Master Equipment Replacement Transmission Shaft
