Description

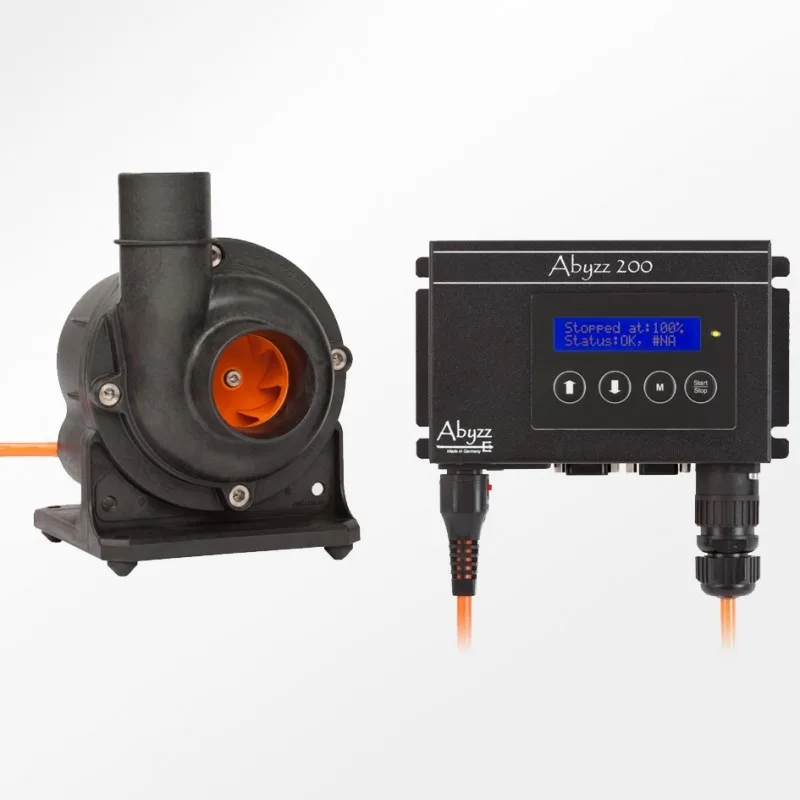

Abyzz A200 3,750GPH Commercial Grade DC Pump The innovative Abyzz A200 DC Pump is built by a German company for the US aquatic market. These pumps only contain the highest quality parts to make an incredibly reliable, efficient controllable DC water pump. Featuring laser welded a titanium encased Neodymium rotor, powerful and programmable menu-controlled electronic driver, and a sinusoidal three-phase synchronous motor, the A200 is in a class of it’s own in terms of size and performance. Max Flow – 3,750 GPH | Max Head – 31 feet BOOSTMODE® max flow rate: 4,400 gph / 17,000 lphNormal mode max flow rate: 3,750 gph / 14,000 lphMax delivery height: 31 ft / 9.4 metersRated input: 4-200WInput voltage: 110V~ @ 60HzOperating Voltage: 200VAmbient temperature: 35.5°F – 104°F / +2°C – 40°CMaximum operating pressure: 21.75 psi / 1,5 barMaximum immersion depth: 6.5 ft / 2 metersPump cable length: 9.75 ft/ 3mInlet/outlet connections: 2”/ 1.5” (50mm/40mm) suitable for PVC/AVB adhesive fittings From titanium impellers to the sinusoidal three-phase synchronous motor, the materials used in the Abyzz pumps have been carefully selected for harmonious compatibility and integration. The simple to use controller with bright LCD screen boasts a full menu allowing you to know the status of the pump, power usage, RPM, overall percentage of flow, temperature and more. Whats Included Abyzz A200 pump 110V 60Hz driver 5ft power cable Driver/Controller connecting cable: 3M/9.75 ft or 10M/32.5 ft Operating manual Built with the same commercial grade components and features of the bigger Abyzz pumps in a very compact and powerful package. The simple to use controller with bright LCD screen boasts a full menu allowing you to know the status of the pump, power usage, RPM, overall percentage of flow, temperature and more. The motor operates at an efficiency factor of over 90% which, along with the fact that you can adjust the speed to meet your performance requirements, makes it an energy-saving solution to traditional power hungry higher voltage pumps.The menu controlled driver and motor run on an mere 12V and because of that it can be used in a myriad of applications.The integrated flushing bearing provides optimum protection against calcification (Calcium Carbonate deposits – CaCO3). In conjunction with the silicon carbide bearings and special Tungsten carbide shaft, this feature provides for low-maintenance operations.The materials used to manufacture all of these components have been carefully selected so as to be harmoniously integrated into the overall design to look great, long operational lifetime, and meet the most demanding requirements and highest quality standards. Applications Freshwater and Saltwater Aquaria Ponds Creeks Pools Spas Hydroculture Aquaculture This product was developed and is manufactured in Germany by Venotec. 10 Year Warranty* In accordance with the implied warranty, we provide a 12-month guarantee. You can also extend the product guarantee period from 12 months to 10 years free of charge within 4 weeks of purchasing the product (date of invoice) after registering your product successfully.
